KEMET-PEG130KJ4300QL1 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	3000 µF
Tolerance:	-10%, +30%
Voltage - Rated:	40 V
ESR (Equivalent Series Resistance):	42mOhm @ 100Hz
Lifetime @ Temp.:	37000 Hrs @ 105°C
Operating Temperature:	-40°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	1.85 A @ 100 Hz
Ripple Current @ High Frequency:	-
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.787" Dia x 1.457" L (20.00mm x 37.00mm)
Height - Seated (Max):	-
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Axial, Can

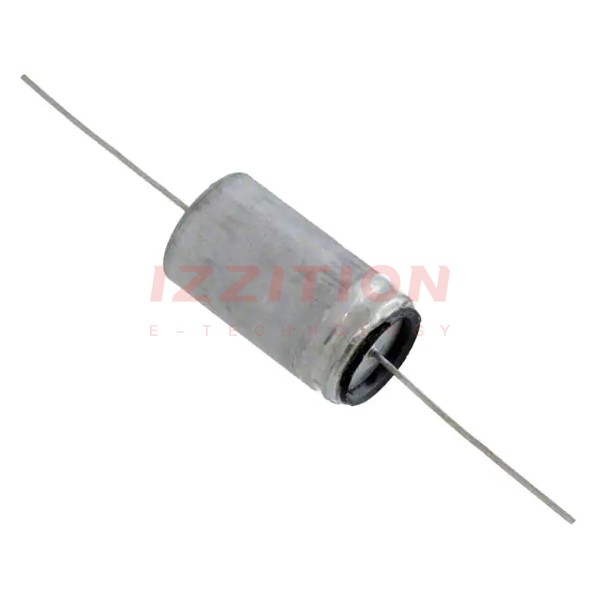

KEMET PEG130KJ4300QL1
