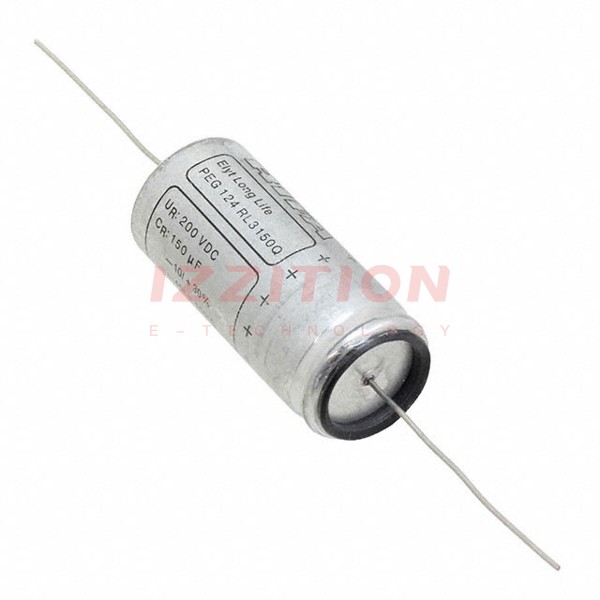

KEMET-PEG124RL3150QL1 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	150 µF
Tolerance:	-10%, +30%
Voltage - Rated:	200 V
ESR (Equivalent Series Resistance):	690mOhm @ 100Hz
Lifetime @ Temp.:	22000 Hrs @ 105°C
Operating Temperature:	-40°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	446 mA @ 100 Hz
Ripple Current @ High Frequency:	-
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.787" Dia x 1.811" L (20.00mm x 46.00mm)
Height - Seated (Max):	-
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Axial, Can

KEMET PEG124RL3150QL1
