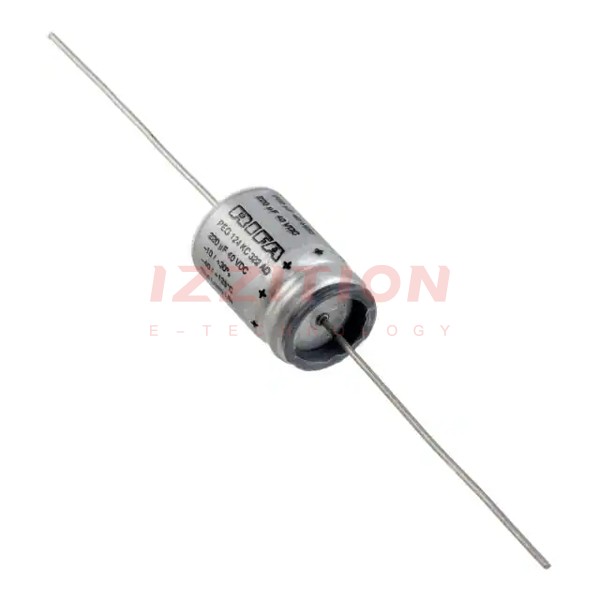

KEMET-PEG124KC322AQL1 - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	220 µF
Tolerance:	-10%, +30%
Voltage - Rated:	40 V
ESR (Equivalent Series Resistance):	440mOhm @ 100Hz
Lifetime @ Temp.:	2500 Hrs @ 125°C
Operating Temperature:	-40°C ~ 125°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	452 mA @ 100 Hz
Ripple Current @ High Frequency:	-
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.512" Dia x 0.787" L (13.00mm x 20.00mm)
Height - Seated (Max):	-
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Axial, Can

KEMET PEG124KC322AQL1
