Please send RFQ , we will respond immediately.

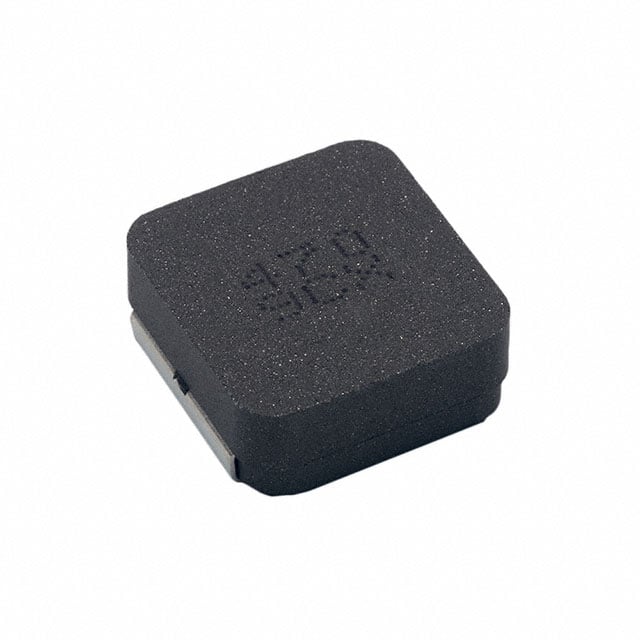

| Part Number | MPXV1D1740LR47 | MPXV1D1770LR47 | MPXV1D1040LR47 |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Type | - | - | - |
| Material - Core | Metal Composite | Metal Composite | Metal Composite |
| Inductance | 470 nH | 470 nH | 470 nH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 34 A | 52.5 A | 26.4 A |
| Current - Saturation (Isat) | 75A | 108A | 42A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 1.8mOhm Max | 1mOhm Max | 2.4mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 46MHz | 45MHz | 65MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.425" L x 0.394" W (10.80mm x 10.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.276" (7.00mm) | 0.157" (4.00mm) |
