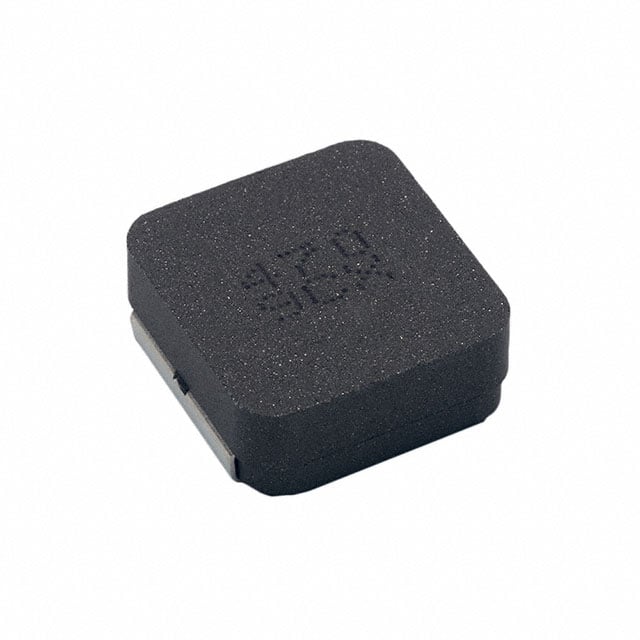

| Part Number | MPXV1D1040L1R5 | MPXV1D1740L1R5 | MPXV1D1040L1R0 |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Type | - | - | - |
| Material - Core | Metal Composite | Metal Composite | Metal Composite |
| Inductance | 1.5 µH | 1.5 µH | 1 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 17.7 A | 23.5 A | 21.1 A |
| Current - Saturation (Isat) | 26A | 28A | 29A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 5.4mOhm Max | 3.8mOhm Max | 3.8mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 30MHz | 24MHz | 35MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.425" L x 0.394" W (10.80mm x 10.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) |
