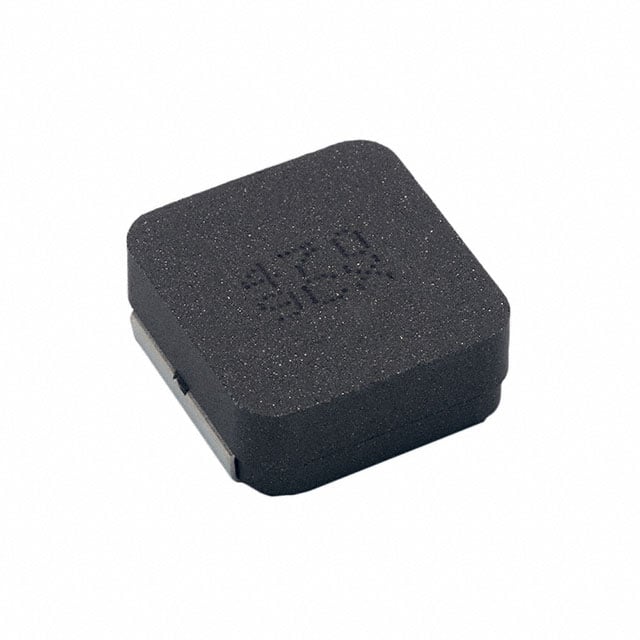

| Part Number | MPXV1D0530LR47 | MPXV1D0630LR47 | MPXV1D0830LR47 | MPXV1D0520LR47 |
|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active |
| Type | - | - | - | - |
| Material - Core | Metal Composite | Metal Composite | Metal Composite | Metal Composite |
| Inductance | 470 nH | 470 nH | 470 nH | 470 nH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 13.8 A | 18.7 A | 24 A | 12 A |
| Current - Saturation (Isat) | 13A | 21A | 30A | 14A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 6.9mOhm Max | 4mOhm Max | 3.1mOhm Max | 7.8mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | 91MHz | 70MHz | 80MHz | 87MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.209" L x 0.197" W (5.30mm x 5.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.079" (2.00mm) |
