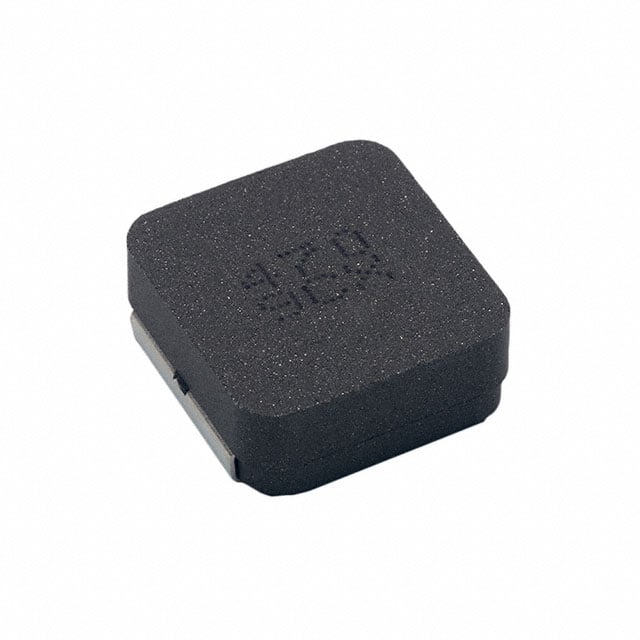

| Part Number | MPXV1D0520LR68 | MPXV1D0530LR68 |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Metal Composite | Metal Composite |
| Inductance | 680 nH | 680 nH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 9.5 A | 12.6 A |
| Current - Saturation (Isat) | 11A | 12A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 12.2mOhm Max | 8.2mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 74MHz | 70MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.209" L x 0.197" W (5.30mm x 5.00mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.118" (3.00mm) |
