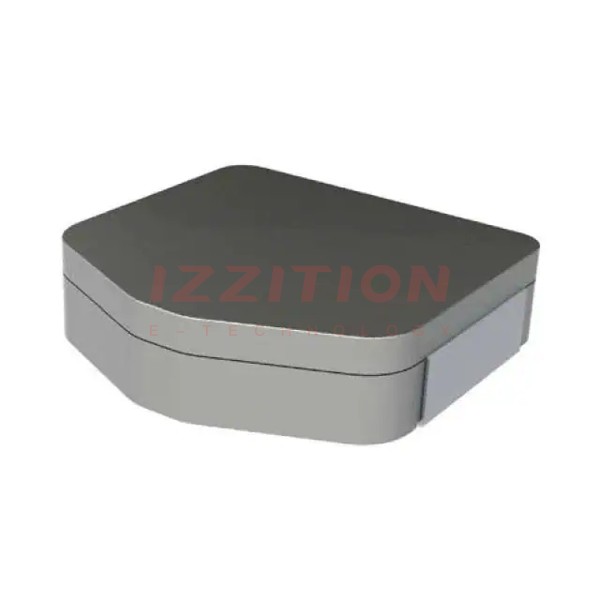

| Part Number | MPX1D2213L100 | MPX1D2213L1R0 | MPX1D2213L101 | MPX1D2213L150 |
|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Metal Composite | Metal Composite | Metal Composite | Metal Composite |
| Inductance | 10 µH | 1 µH | 100 µH | 15 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 34 A | 74 A | 10 A | 27.5 A |
| Current - Saturation (Isat) | 36A | 84A | 10.5A | 30A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 4.4mOhm Max | 1mOhm Max | 47.4mOhm Max | 6.8mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | 5.2MHz | 22MHz | 1.6MHz | 4MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.886" L x 0.866" W (22.50mm x 22.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.512" (13.00mm) |
