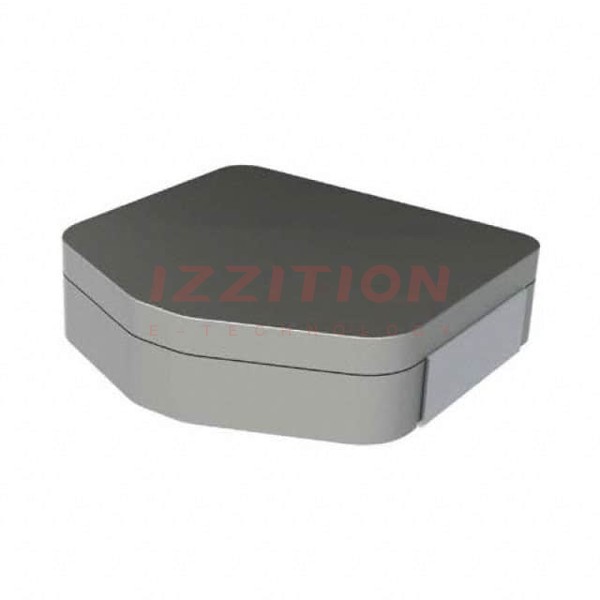

| Part Number | MPX1D1770L100 | MPX1D1770L150 | MPX1D1770L1R0 | MPX1D1770L101 | MPX1D1740L100 |
|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Metal Composite | Metal Composite | Metal Composite | Metal Composite | Metal Composite |
| Inductance | 10 µH | 15 µH | 1 µH | 100 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 14.5 A | 12 A | 38 A | 4.5 A | 9.5 A |
| Current - Saturation (Isat) | 16.5A | 14A | 62A | 7.5A | 14.5A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 12.2mOhm Max | 17.8mOhm Max | 1.8mOhm Max | 110.3mOhm Max | 21.7mOhm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | 7MHz | 5.5MHz | 27MHz | 1.8MHz | 6.8MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.669" L x 0.673" W (17.00mm x 17.10mm) |
| Height - Seated (Max) | 0.276" (7.00mm) | 0.276" (7.00mm) | 0.276" (7.00mm) | 0.276" (7.00mm) | 0.157" (4.00mm) |
