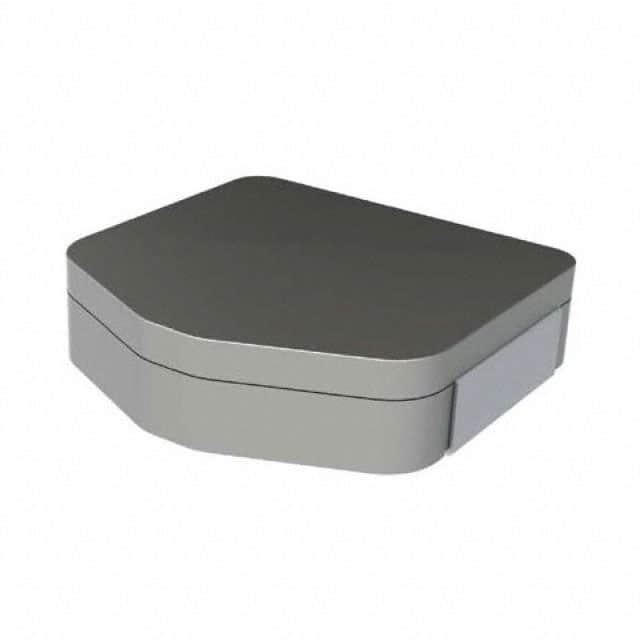

| Part Number | MPX1D1740L3R3 | MPX1D1770L3R3 | MPX1D1040L3R3 |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Metal Composite | Metal Composite | Metal Composite |
| Inductance | 3.3 µH | 3.3 µH | 3.3 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 16.5 A | 28 A | 11.4 A |
| Current - Saturation (Isat) | 27.5A | 30.5A | 15A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 8.1mOhm Max | 3.4mOhm Max | 12.8mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 14MHz | 13MHz | 18MHz |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.669" L x 0.673" W (17.00mm x 17.10mm) | 0.425" L x 0.394" W (10.80mm x 10.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.276" (7.00mm) | 0.157" (4.00mm) |
