MPX1D1264L220
  • Share:

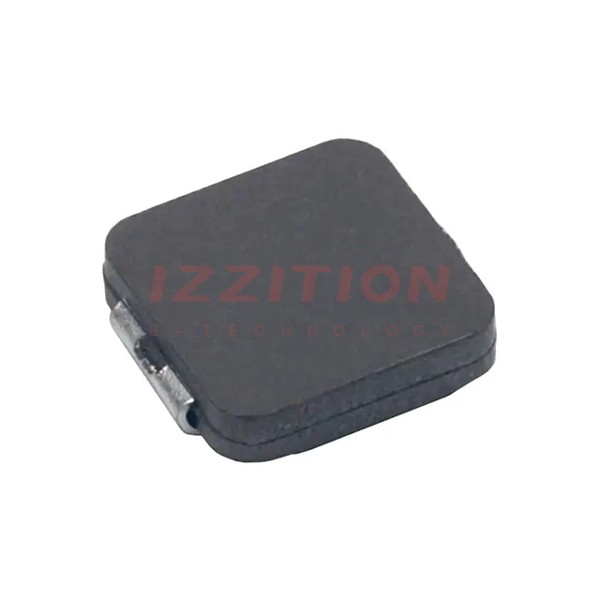

KEMET MPX1D1264L220

Manufacturer No:
MPX1D1264L220
Manufacturer:
KEMET
Package:
Tape & Reel (TR)
Datasheet:
MPX1D1264L220 Datasheet
ECAD Model:
-
Description:
FIXED IND 22UH 8.2A 35.1MOHM SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Drum Core, Wirewound
Material - Core:Metal Composite
Inductance:22 µH
Tolerance:±20%
Current Rating (Amps):8.2 A
Current - Saturation (Isat):9.5A
Shielding:Shielded
DC Resistance (DCR):35.1mOhm Max
Q @ Freq:-
Frequency - Self Resonant:5.5MHz
Ratings:-
Operating Temperature:-55°C ~ 155°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.520" L x 0.492" W (13.20mm x 12.50mm)
Height - Seated (Max):0.252" (6.40mm)
0 Remaining View Similar

In Stock

$2.70
117

Please send RFQ , we will respond immediately.
