Please send RFQ , we will respond immediately.

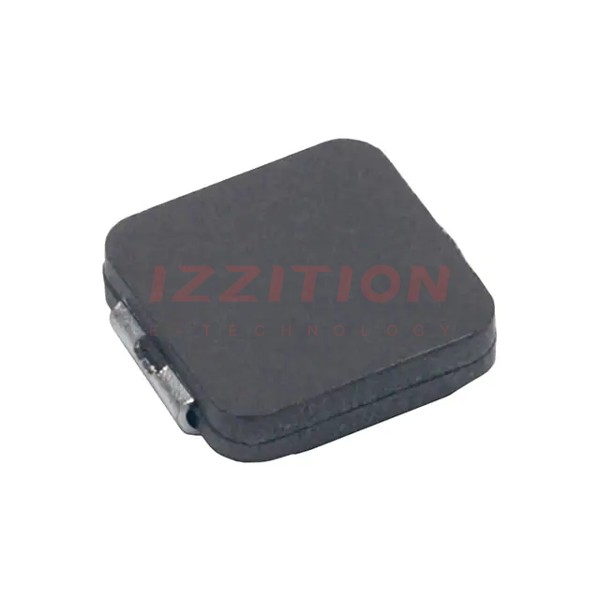

| Part Number | MPX1D1250L1R0 | MPX1D1250L1R5 | MPX1D1250L100 | MPX1D1250L150 |
|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Metal Composite | Metal Composite | Metal Composite | Metal Composite |
| Inductance | 1 µH | 1.5 µH | 10 µH | 15 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 28.8 A | 24.2 A | 10.1 A | 8.2 A |
| Current - Saturation (Isat) | 43A | 32A | 13.5A | 11A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 2.6mOhm Max | 3.6mOhm Max | 20.6mOhm Max | 30.8mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | 34MHz | 25MHz | 8.5MHz | 7MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.520" L x 0.492" W (13.20mm x 12.50mm) | 0.520" L x 0.492" W (13.20mm x 12.50mm) |
| Height - Seated (Max) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
