MPX1D1235L2R2
  • Share:

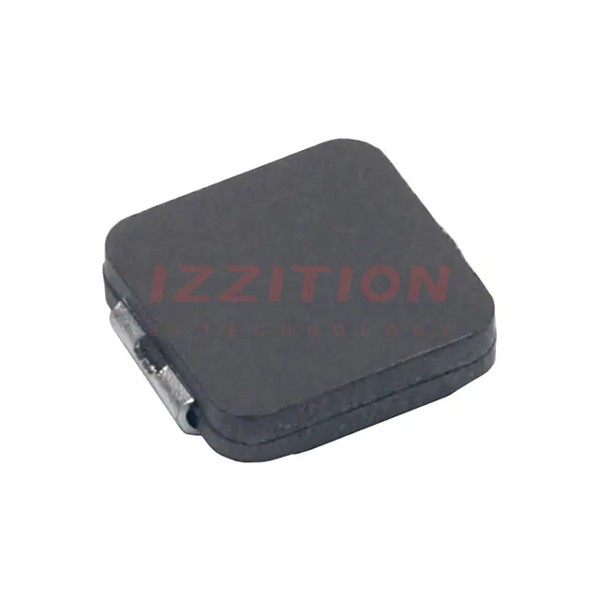

KEMET MPX1D1235L2R2

Manufacturer No:
MPX1D1235L2R2
Manufacturer:
KEMET
Package:
Tape & Reel (TR)
Datasheet:
MPX1D1235L2R2 Datasheet
ECAD Model:
-
Description:
FIXED IND 2.2UH 15.2A 8.4MOHM SM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Drum Core, Wirewound
Material - Core:Metal Composite
Inductance:2.2 µH
Tolerance:±20%
Current Rating (Amps):15.2 A
Current - Saturation (Isat):23A
Shielding:Shielded
DC Resistance (DCR):8.4mOhm Max
Q @ Freq:-
Frequency - Self Resonant:21MHz
Ratings:-
Operating Temperature:-55°C ~ 155°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.520" L x 0.492" W (13.20mm x 12.50mm)
Height - Seated (Max):0.138" (3.50mm)
0 Remaining View Similar

In Stock

$3.37
70

Please send RFQ , we will respond immediately.
