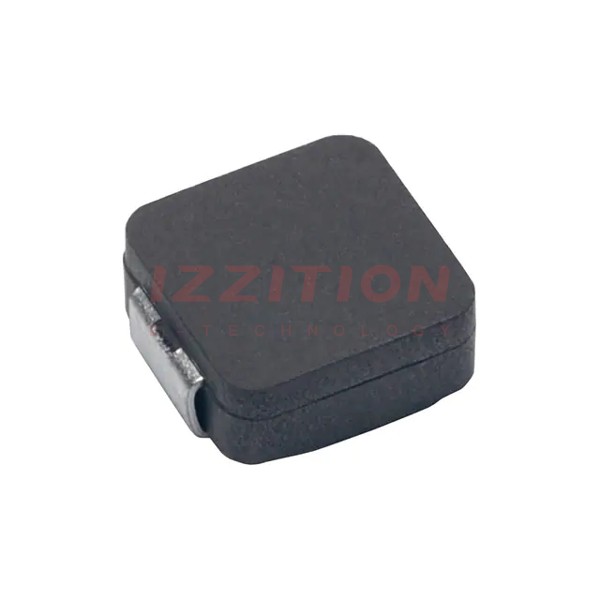

| Part Number | MPX1D0630L220 | MPX1D0830L220 | MPX1D0530L220 |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Metal Composite | Metal Composite | Metal Composite |
| Inductance | 22 µH | 22 µH | 22 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 2.7 A | 3.6 A | 2 A |
| Current - Saturation (Isat) | 3.5A | 5A | 2.5A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 186.3mOhm Max | 134.5mOhm Max | 341.2mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.209" L x 0.197" W (5.30mm x 5.00mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
