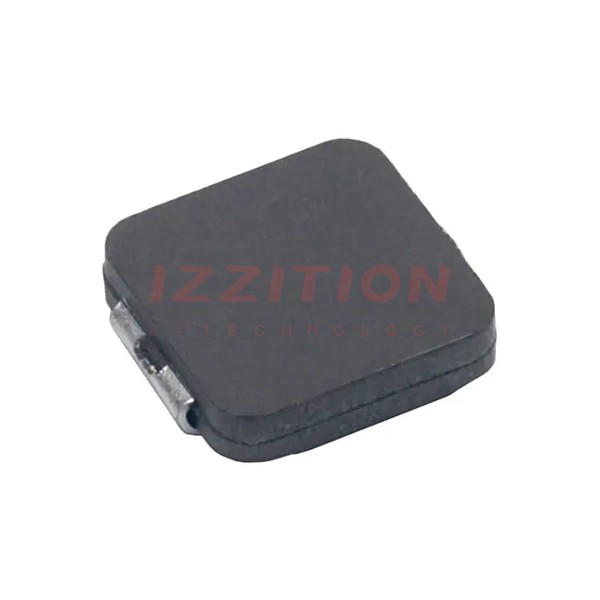

| Part Number | MPX1D0618LR10 | MPX1D0618LR15 |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Metal Composite | Metal Composite |
| Inductance | 100 nH | 150 nH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 18.9 A | 16.2 A |
| Current - Saturation (Isat) | 40A | 30A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 2.8mOhm Max | 3.8mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.276" L x 0.256" W (7.00mm x 6.50mm) |
| Height - Seated (Max) | 0.071" (1.80mm) | 0.071" (1.80mm) |
