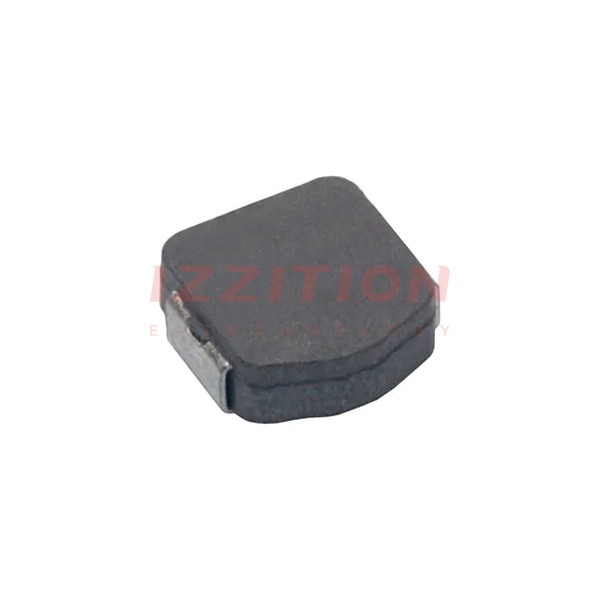

| Part Number | MPX1D0520L100 | MPX1D0520L1R0 | MPX1D0530L100 |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Metal Composite | Metal Composite | Metal Composite |
| Inductance | 10 µH | 1 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 2.2 A | 7.6 A | 3.1 A |
| Current - Saturation (Isat) | 3.5A | 9A | 3.5A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 222.8mOhm Max | 18.9mOhm Max | 140.1mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.209" L x 0.197" W (5.30mm x 5.00mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.118" (3.00mm) |
