Please send RFQ , we will respond immediately.

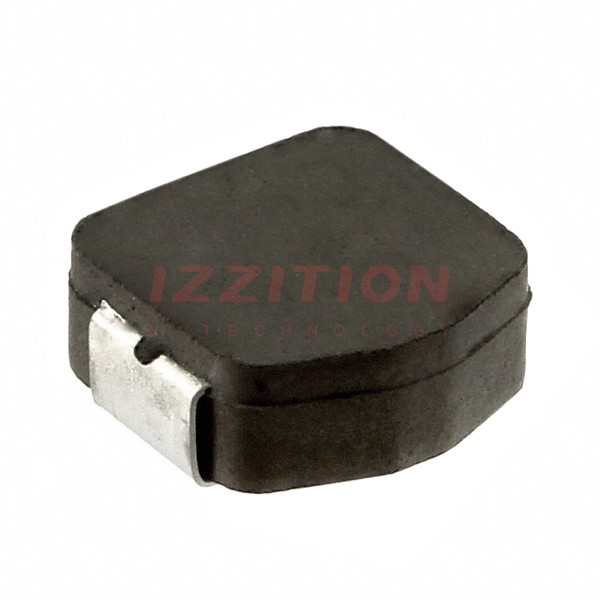

| Part Number | MPLCG0630L1R5 | MPLCG0630L1R0 |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Metal Composite | Metal Composite |
| Inductance | 1.5 µH | 1 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 9.9 A | 11.9 A |
| Current - Saturation (Isat) | 8.3A | 11.3A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 15mOhm Max | 9mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -20°C ~ 120°C | -20°C ~ 120°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.295" L x 0.264" W (7.50mm x 6.70mm) | 0.295" L x 0.264" W (7.50mm x 6.70mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) |
