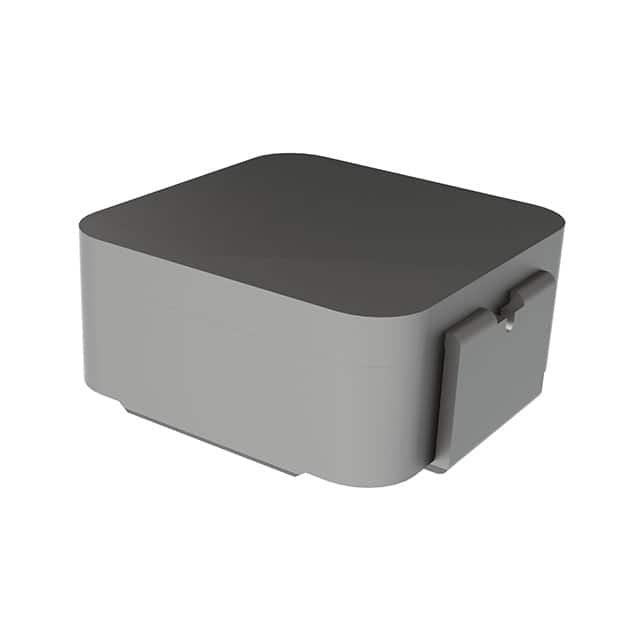

| Part Number | MPEV1D0630L150 | MPEV1D0630L1R0 | MPEV1D0630L100 |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Type | - | - | - |
| Material - Core | Metal Composite | Metal Composite | Metal Composite |
| Inductance | 15 µH | 1 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 3.3 A | 13.1 A | 4.2 A |
| Current - Saturation (Isat) | 4A | 13A | 4.5A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 130.2mOhm Max | 8.2mOhm Max | 78mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 13MHz | 43MHz | 15MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 180°C | -55°C ~ 180°C | -55°C ~ 180°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.276" L x 0.256" W (7.00mm x 6.50mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
