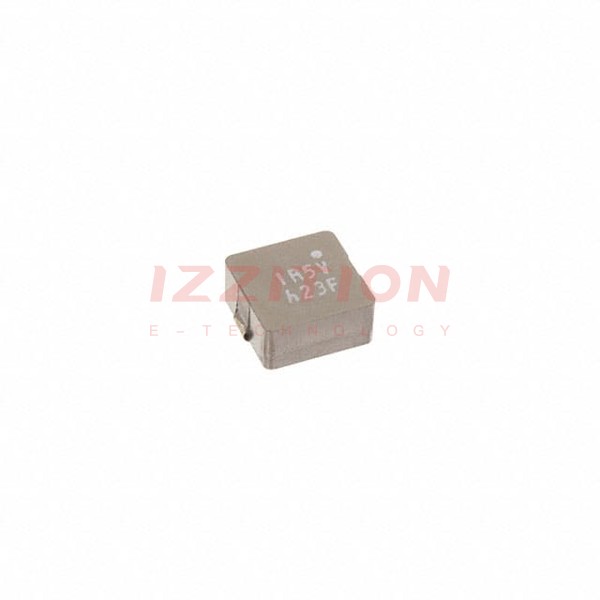

| Part Number | MPCV1260L1R5 | MPCV1060L1R5 | MPCV1260L1R0 |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Type | - | - | - |
| Material - Core | Metal Composite | Metal Composite | Metal Composite |
| Inductance | 1.5 µH | 1.5 µH | 1 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 28 A | 22 A | 32 A |
| Current - Saturation (Isat) | 35A | 27A | 42A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 2.31mOhm Max | 2.75mOhm Max | 1.65mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.571" L x 0.492" W (14.50mm x 12.50mm) | 0.472" L x 0.394" W (12.00mm x 10.00mm) | 0.571" L x 0.492" W (14.50mm x 12.50mm) |
| Height - Seated (Max) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) |
