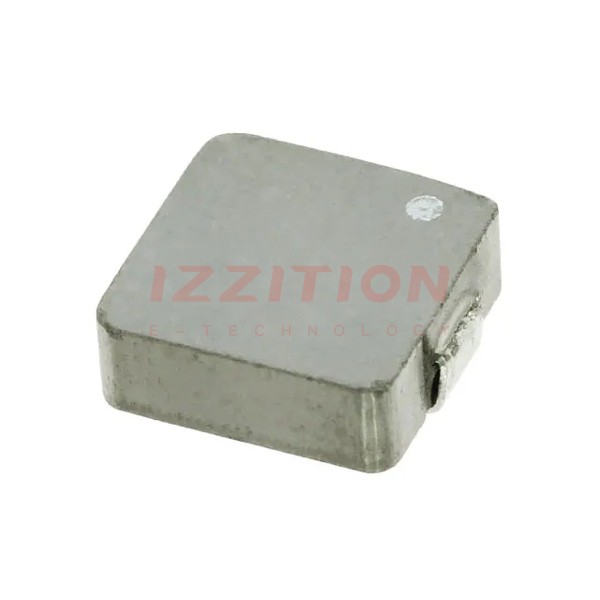

| Part Number | MPCH1040LR36 | MPCG1040LR36 |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Metal Composite | Metal Composite |
| Inductance | 360 nH | 360 nH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 28 A | 25 A |
| Current - Saturation (Isat) | 24A | 30A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 0.88mOhm | 1.05mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -20°C ~ 120°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.453" L x 0.394" W (11.50mm x 10.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.157" (4.00mm) |
