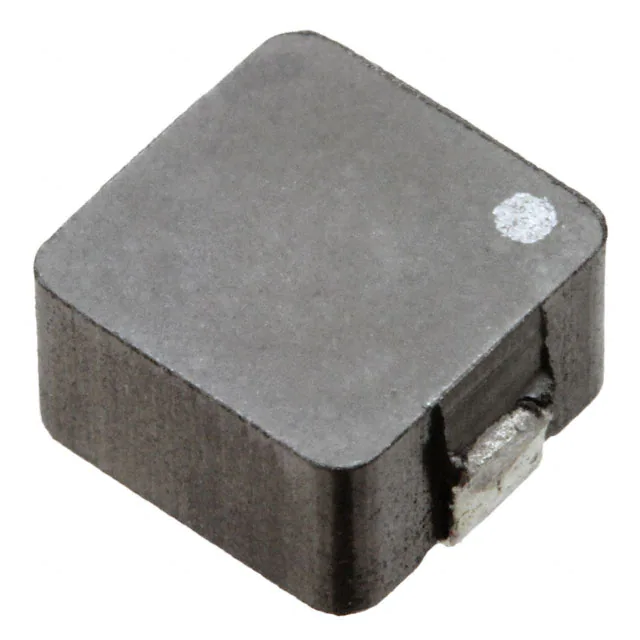

| Part Number | MPCH0740LR24 | MPCH0740LR26 | MPCH0730LR24 |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Type | - | - | - |
| Material - Core | Metal Composite | Metal Composite | Metal Composite |
| Inductance | 240 nH | 260 nH | 240 nH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 27 A | - | 23 A |
| Current - Saturation (Isat) | 20A | - | 19A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 1mOhm | - | 1.2mOhm |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.315" L x 0.264" W (8.00mm x 6.70mm) | 0.315" L x 0.264" W (8.00mm x 6.70mm) | 0.315" L x 0.264" W (8.00mm x 6.70mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.118" (3.00mm) |
