Please send RFQ , we will respond immediately.

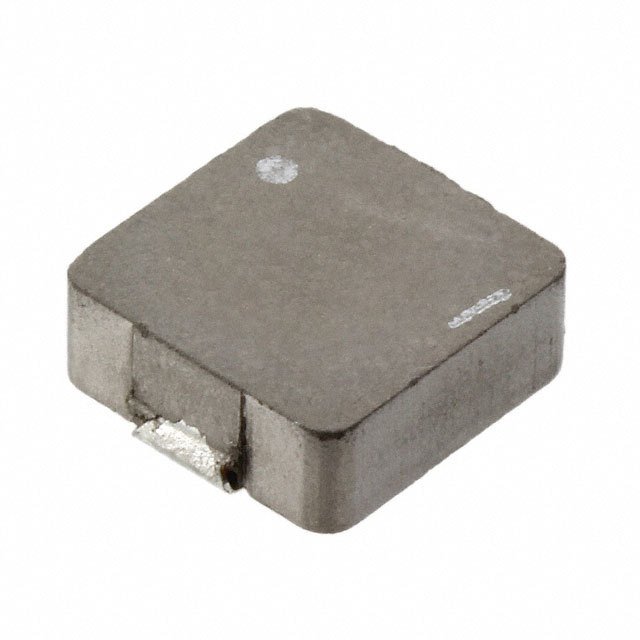

| Part Number | MPC1040LR56C | MPC1040LR36C |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Obsolete |
| Type | - | - |
| Material - Core | Ferrite | Ferrite |
| Inductance | 560 nH | 360 nH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 23 A | 25.5 A |
| Current - Saturation (Isat) | 25A | 30A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 1.3mOhm Max | 1.05mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -20°C ~ 120°C | -20°C ~ 120°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, J-Lead | 2-SMD, J-Lead |
| Supplier Device Package | - | - |
| Size / Dimension | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.453" L x 0.394" W (11.50mm x 10.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.157" (4.00mm) |
