Please send RFQ , we will respond immediately.

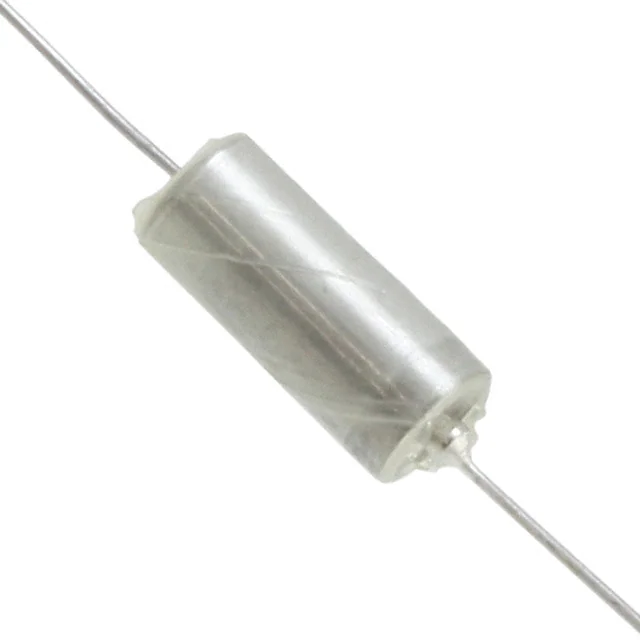

| Part Number | M39003/01-2306 | M39003/01-2356 | M39003/01-2301 | M39003/01-2302 | M39003/01-2304 |
|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | Vishay Sprague | KEMET |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 22 µF | 1 µF | 100 µF | 100 µF | 6.8 µF |
| Tolerance | ±10% | ±10% | ±10% | ±20% | ±10% |
| Voltage - Rated | 35 V | 50 V | 20 V | 20 V | 35 V |
| Type | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed | Hermetically Sealed |
| ESR (Equivalent Series Resistance) | 1.3Ohm | 8Ohm @ 100kHz | 600mOhm | - | 2.5Ohm |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Lifetime @ Temp. | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.289" Dia x 0.822" L (7.34mm x 20.88mm) | 0.135" Dia x 0.422" L (3.43mm x 10.72mm) | 0.351" Dia x 0.922" L (8.92mm x 23.42mm) | 0.351" Dia x 0.786" L (8.92mm x 19.96mm) | 0.185" Dia x 0.610" L (4.70mm x 15.49mm) |
| Height - Seated (Max) | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - |
| Manufacturer Size Code | C | A | D | D | B |
| Ratings | - | - | - | - | - |
| Features | High Reliability | High Reliability | High Reliability | High Reliability | High Reliability |
| Failure Rate | M (1%) | M (1%) | M (1%) | M (1%) | M (1%) |
