KEMET-LDEPE2220KA5N00 - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	0.022 µF
Tolerance:	±10%
Voltage Rating - AC:	200V
Voltage Rating - DC:	630V
Dielectric Material:	Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	2824 (7260 Metric)
Size / Dimension:	0.287" L x 0.240" W (7.30mm x 6.10mm)
Height - Seated (Max):	0.134" (3.40mm)
Termination:	Solder Pads
Lead Spacing:	-
Applications:	Automotive
Ratings:	AEC-Q200
Features:	High Temperature

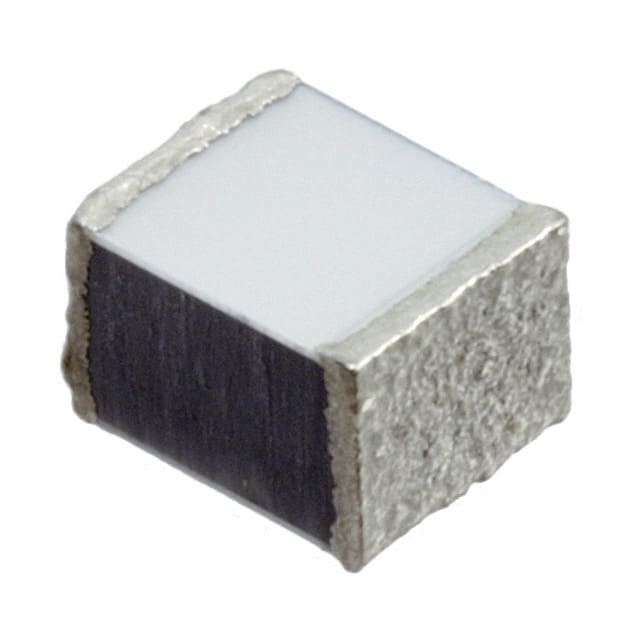

KEMET LDEPE2220KA5N00
