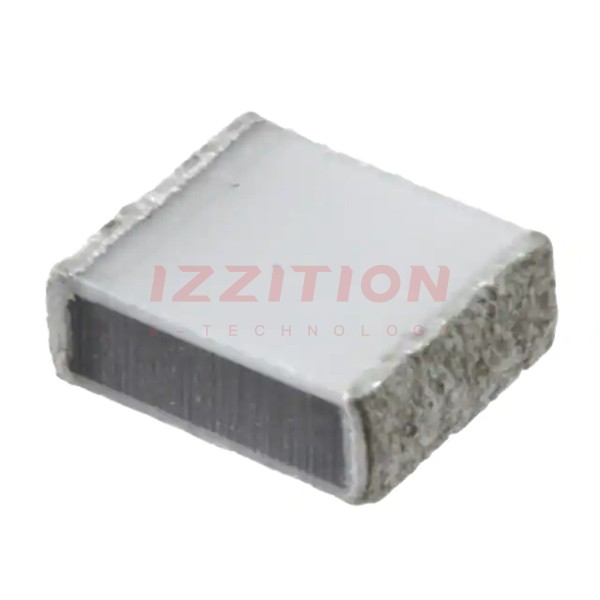

KEMET-LDEIF3470KA0N00 - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	0.47 µF
Tolerance:	±10%
Voltage Rating - AC:	120V
Voltage Rating - DC:	250V
Dielectric Material:	Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	4030 (10276 Metric)
Size / Dimension:	0.413" L x 0.311" W (10.50mm x 7.90mm)
Height - Seated (Max):	0.217" (5.50mm)
Termination:	Solder Pads
Lead Spacing:	-
Applications:	Automotive
Ratings:	AEC-Q200
Features:	High Temperature

KEMET LDEIF3470KA0N00
