KEMET-LDEID2680JA5N00 - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	0.068 µF
Tolerance:	±5%
Voltage Rating - AC:	120V
Voltage Rating - DC:	250V
Dielectric Material:	Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	2220 (5750 Metric)
Size / Dimension:	0.236" L x 0.197" W (6.00mm x 5.00mm)
Height - Seated (Max):	0.110" (2.80mm)
Termination:	Solder Pads
Lead Spacing:	-
Applications:	Automotive
Ratings:	AEC-Q200
Features:	High Temperature

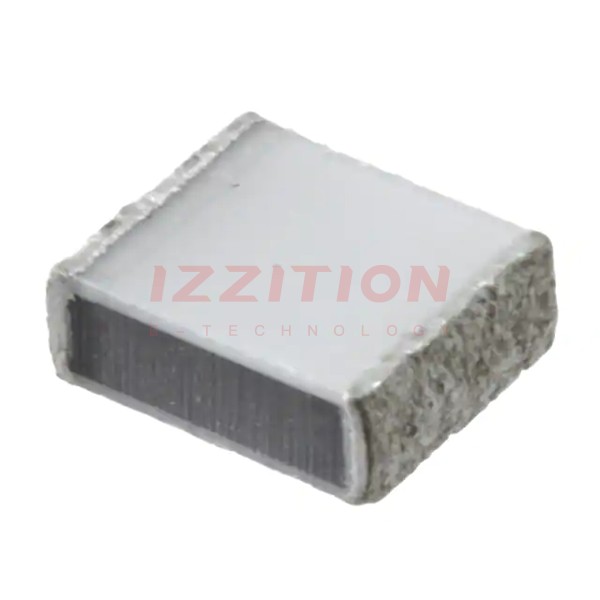

KEMET LDEID2680JA5N00
