KEMET-LDEEF4220KA0N00 - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	2.2 µF
Tolerance:	±10%
Voltage Rating - AC:	63V
Voltage Rating - DC:	100V
Dielectric Material:	Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	4030 (10276 Metric)
Size / Dimension:	0.413" L x 0.311" W (10.50mm x 7.90mm)
Height - Seated (Max):	0.220" (5.60mm)
Termination:	Solder Pads
Lead Spacing:	-
Applications:	Automotive
Ratings:	AEC-Q200
Features:	High Temperature

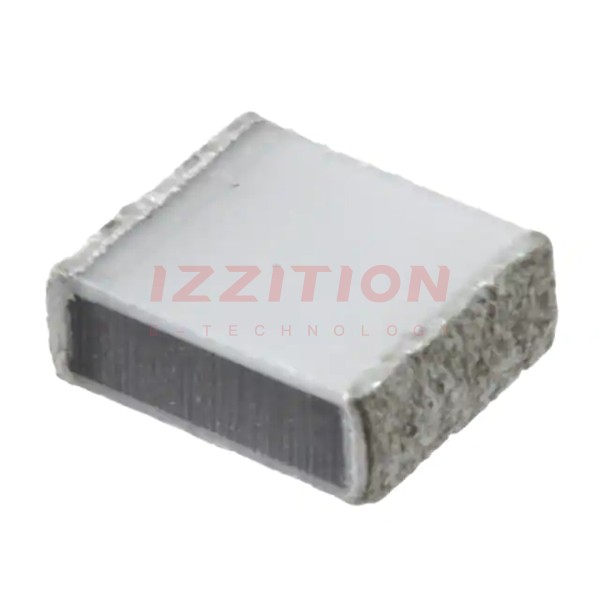

KEMET LDEEF4220KA0N00
