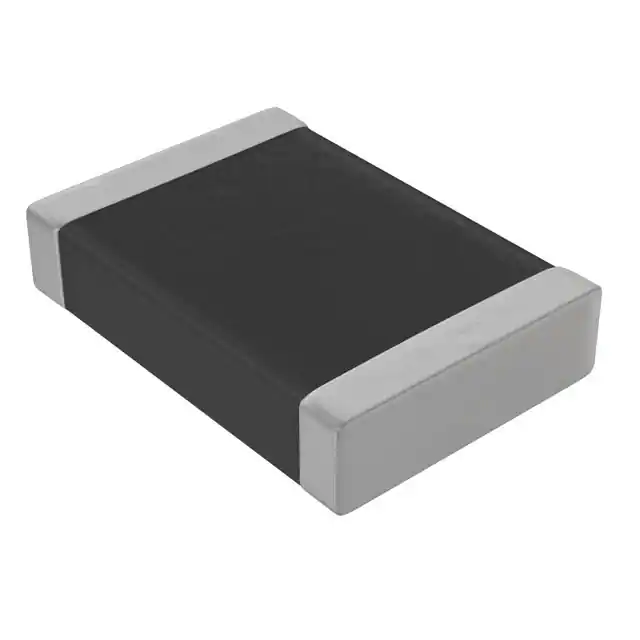

| Part Number | LDEEB2330JA0N00 | LDEEB2330MA0N00 | LDEEB2330KA0N00 | LDECB2330JA0N00 |
|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active |
| Capacitance | 0.033 µF | 0.033 µF | 0.033 µF | 0.033 µF |
| Tolerance | ±5% | ±20% | ±10% | ±5% |
| Voltage Rating - AC | 63V | 63V | 63V | 40V |
| Voltage Rating - DC | 100V | 100V | 100V | 50V |
| Dielectric Material | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) | 1210 (3225 Metric) |
| Size / Dimension | 0.130" L x 0.098" W (3.30mm x 2.50mm) | 0.130" L x 0.098" W (3.30mm x 2.50mm) | 0.130" L x 0.098" W (3.30mm x 2.50mm) | 0.130" L x 0.098" W (3.30mm x 2.50mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Termination | Solder Pads | Solder Pads | Solder Pads | Solder Pads |
| Lead Spacing | - | - | - | - |
| Applications | Automotive | Automotive | Automotive | Automotive |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Features | High Temperature | High Temperature | High Temperature | High Temperature |
