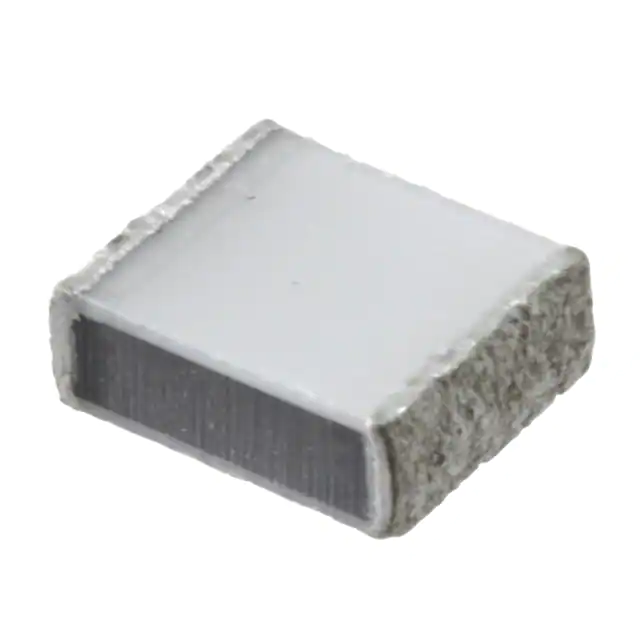

| Part Number | LDECF4330KA0N00 | LDEDF4330KA0N00 |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 3.3 µF | 3.3 µF |
| Tolerance | ±10% | ±10% |
| Voltage Rating - AC | 40V | 40V |
| Voltage Rating - DC | 50V | 63V |
| Dielectric Material | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked |
| ESR (Equivalent Series Resistance) | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 4030 (10276 Metric) | 4030 (10276 Metric) |
| Size / Dimension | 0.413" L x 0.311" W (10.50mm x 7.90mm) | 0.413" L x 0.311" W (10.50mm x 7.90mm) |
| Height - Seated (Max) | 0.185" (4.70mm) | 0.185" (4.70mm) |
| Termination | Solder Pads | Solder Pads |
| Lead Spacing | - | - |
| Applications | Automotive | Automotive |
| Ratings | AEC-Q200 | AEC-Q200 |
| Features | High Temperature | High Temperature |
