Please send RFQ , we will respond immediately.

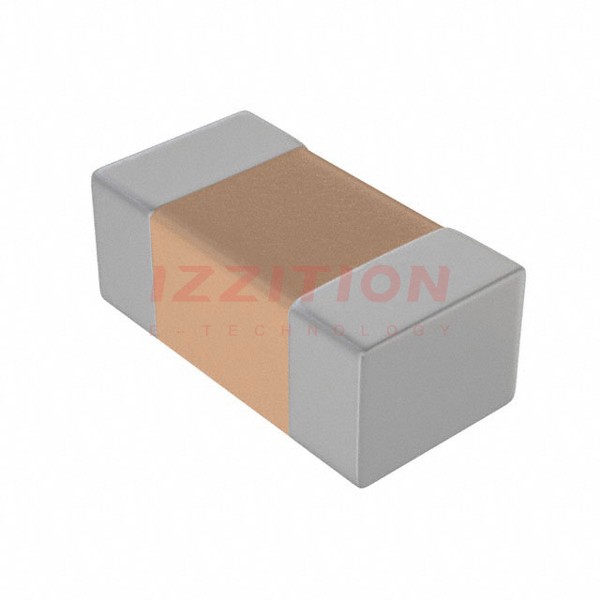

| Part Number | LDBAA2470JC5N0 | LDBAA2270JC5N0 | LDBAA2470GC5N0 |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 0.047 µF | 0.027 µF | 0.047 µF |
| Tolerance | ±5% | ±5% | ±2% |
| Voltage Rating - AC | - | - | - |
| Voltage Rating - DC | 16V | 16V | 16V |
| Dielectric Material | Polyphenylene Sulfide (PPS), Metallized - Stacked | Polyphenylene Sulfide (PPS), Metallized - Stacked | Polyphenylene Sulfide (PPS), Metallized - Stacked |
| ESR (Equivalent Series Resistance) | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric) | 1206 (3216 Metric) | 1206 (3216 Metric) |
| Size / Dimension | 0.130" L x 0.067" W (3.30mm x 1.70mm) | 0.130" L x 0.067" W (3.30mm x 1.70mm) | 0.130" L x 0.067" W (3.30mm x 1.70mm) |
| Height - Seated (Max) | 0.051" (1.30mm) | 0.043" (1.10mm) | 0.051" (1.30mm) |
| Termination | Solder Pads | Solder Pads | Solder Pads |
| Lead Spacing | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - |
| Features | - | - | - |
