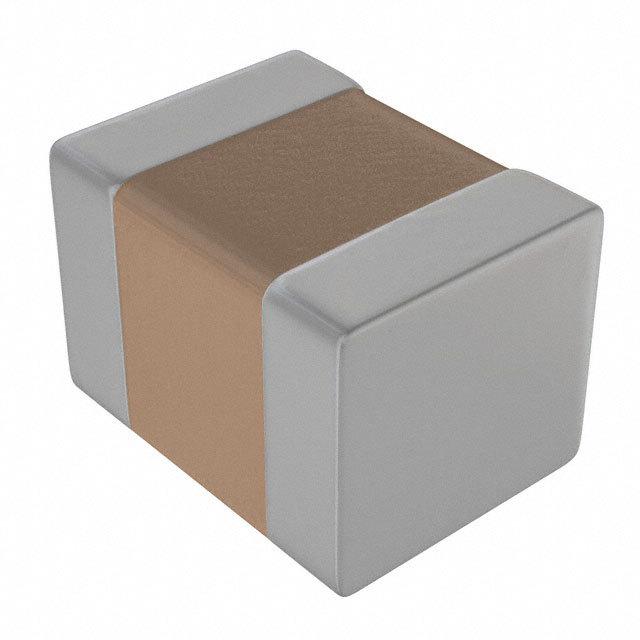

| Part Number | L1210R1R0MDWIT | L1210R100MDWIT |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Last Time Buy | Last Time Buy |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 1 µH | 10 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 2 A | 900 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 55mOhm | 133mOhm |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 250MHz | 23MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1210 (3225 Metric) | 1210 (3225 Metric) |
| Supplier Device Package | 1210 (3225 Metric) | 1210 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.106" (2.70mm) | 0.106" (2.70mm) |
