Please send RFQ , we will respond immediately.

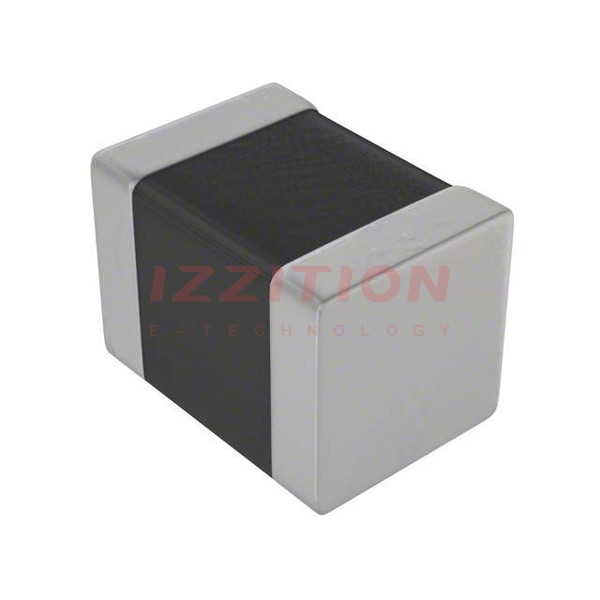

| Part Number | L1007C101KPWST | L1007C102KPWST |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Last Time Buy | Last Time Buy |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 100 µH | 1 mH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 55 mA | 15 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 2.1Ohm | 24Ohm |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 9MHz | 2.4MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 796 kHz | 252 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 1007 (2518 Metric) | 1007 (2518 Metric) |
| Supplier Device Package | 1007 (2518 Metric) | 1007 (2518 Metric) |
| Size / Dimension | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.098" L x 0.071" W (2.50mm x 1.80mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) |
