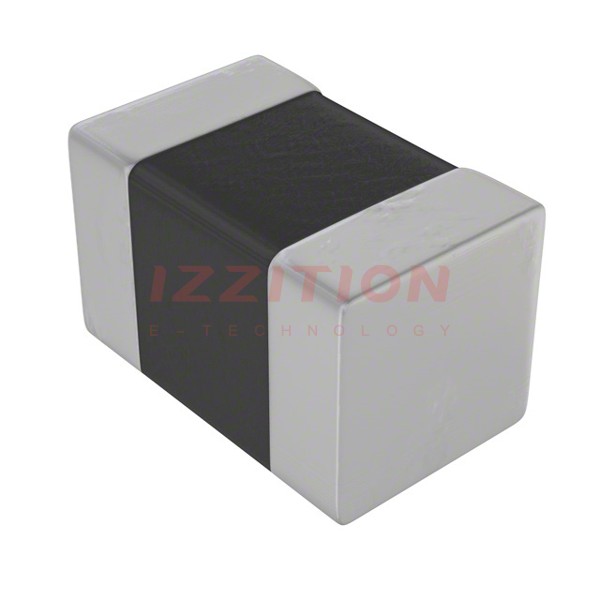

| Part Number | L0806B120JSWST | L0806B820JSWST | L0806B150JSWST | L0806B180JSWST | L0806B1R0JSWST | L0806B220JSWST | L0806B100JSWST |
|---|---|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Last Time Buy | Last Time Buy | Last Time Buy | Last Time Buy | Last Time Buy | Last Time Buy | Last Time Buy |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 12 µH | 82 µH | 15 µH | 18 µH | 1 µH | 22 µH | 10 µH |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Current Rating (Amps) | 200 mA | 85 mA | 190 mA | 150 mA | 385 mA | 140 mA | 215 mA |
| Current - Saturation (Isat) | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.4Ohm | 7.7Ohm | 1.5Ohm | 2.5Ohm | 380mOhm | 2.8Ohm | 1.2Ohm |
| Q @ Freq | - | - | - | - | - | - | - |
| Frequency - Self Resonant | 23MHz | 10MHz | 20MHz | 18MHz | 220MHz | 17MHz | 27MHz |
| Ratings | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 2.52 MHz | 2.52 MHz | 2.52 MHz | 2.52 MHz | 7.96 MHz | 2.52 MHz | 2.52 MHz |
| Features | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0806 (2016 Metric) | 0806 (2016 Metric) | 0806 (2016 Metric) | 0806 (2016 Metric) | 0806 (2016 Metric) | 0806 (2016 Metric) | 0806 (2016 Metric) |
| Supplier Device Package | 0806 (2016 Metric) | 0806 (2016 Metric) | 0806 (2016 Metric) | 0806 (2016 Metric) | 0806 (2016 Metric) | 0806 (2016 Metric) | 0806 (2016 Metric) |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) | 0.071" (1.80mm) |
