Please send RFQ , we will respond immediately.

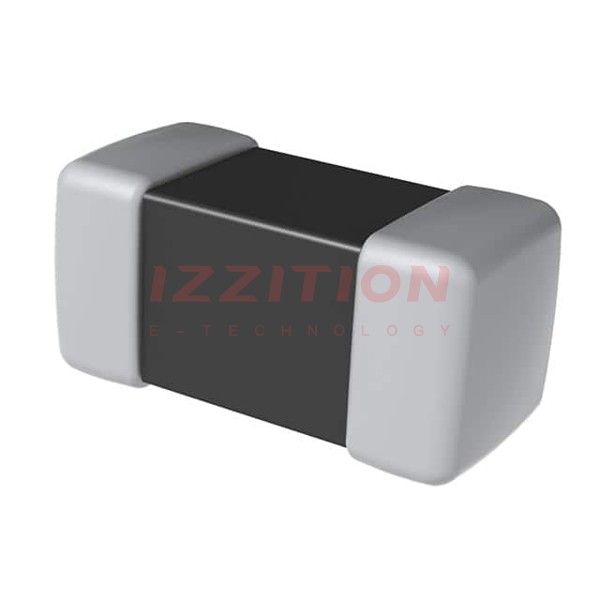

| Part Number | L0805C4R7MDMIT | L0805C4R7MDWIT | L0806C4R7MDMIT |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Obsolete | Last Time Buy | Obsolete |
| Type | Multilayer | Drum Core, Wirewound | Multilayer |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 4.7 µH | 4.7 µH | 4.7 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 700 mA | 360 mA | 900 mA |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Shielded | Unshielded | Shielded |
| DC Resistance (DCR) | 280mOhm Max | 500mOhm | 200mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | 45MHz | - |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 1 MHz | 7.96 MHz | 1 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) | 0806 (2016 Metric) |
| Supplier Device Package | 0805 | 0805 (2012 Metric) | 0806 |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.083" L x 0.059" W (2.11mm x 1.50mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.049" (1.25mm) | 0.041" (1.04mm) | 0.039" (1.00mm) |
