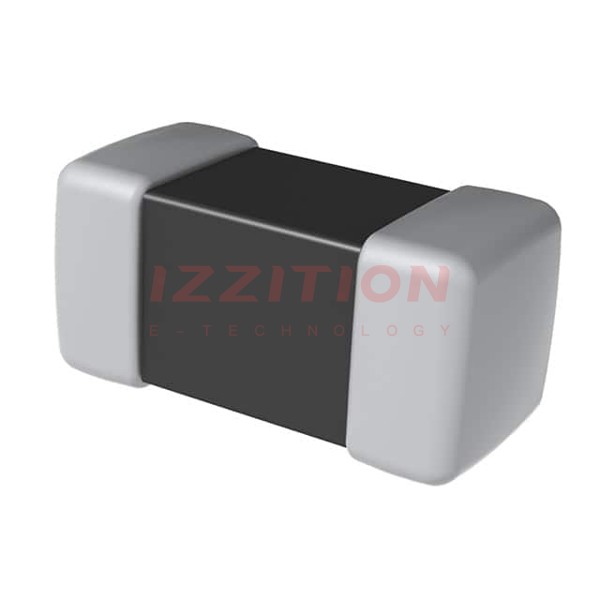

| Part Number | L0805C2R2MDMIT | L0806C2R2MDMIT | L0805C2R2MDWIT |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Obsolete | Obsolete | Last Time Buy |
| Type | Multilayer | Multilayer | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 2.2 µH | 2.2 µH | 2.2 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 800 mA | 1.2 A | 640 mA |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Shielded | Shielded | Unshielded |
| DC Resistance (DCR) | 200mOhm Max | 140mOhm Max | 330mOhm |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | 70MHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz | 7.96 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric) | 0806 (2016 Metric) | 0805 (2012 Metric) |
| Supplier Device Package | 0805 | 0806 | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.049" (1.25mm) | 0.039" (1.00mm) | 0.057" (1.45mm) |
