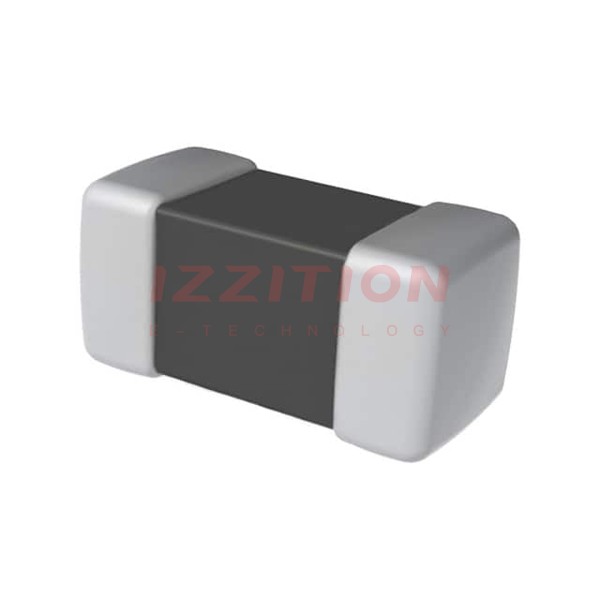

| Part Number | L0805C1R0MPWST | L0805C100MPWST |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Last Time Buy | Last Time Buy |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 1 µH | 10 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 300 mA | 100 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 150mOhm | 700mOhm |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 100MHz | 32MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Inductance Frequency - Test | 7.96 MHz | 2.52 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Supplier Device Package | 0805 | 0805 |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.057" (1.45mm) | 0.057" (1.45mm) |
