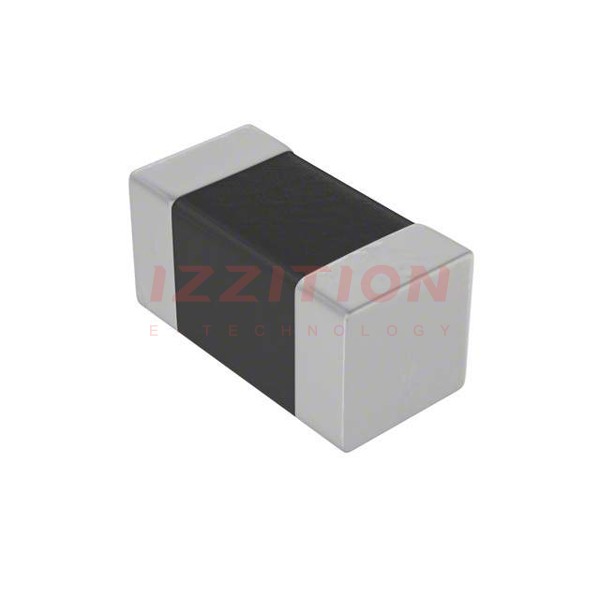

| Part Number | L0603C12NJRMST | L0603C18NJRMST | L0603C10NJRMST |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Multilayer | Multilayer | Multilayer |
| Material - Core | Ceramic | Ceramic | Ceramic |
| Inductance | 12 nH | 18 nH | 10 nH |
| Tolerance | ±5% | ±5% | ±5% |
| Current Rating (Amps) | 300 mA | 300 mA | 300 mA |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 280mOhm Max | 350mOhm Max | 260mOhm Max |
| Q @ Freq | 14 @ 100MHz | 15 @ 100MHz | 14 @ 100MHz |
| Frequency - Self Resonant | 4GHz | 3GHz | 4.6GHz |
| Ratings | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 MHz | 100 MHz | 100 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.063" L x 0.032" W (1.60mm x 0.81mm) |
| Height - Seated (Max) | 0.028" (0.71mm) | 0.028" (0.71mm) | 0.028" (0.71mm) |
