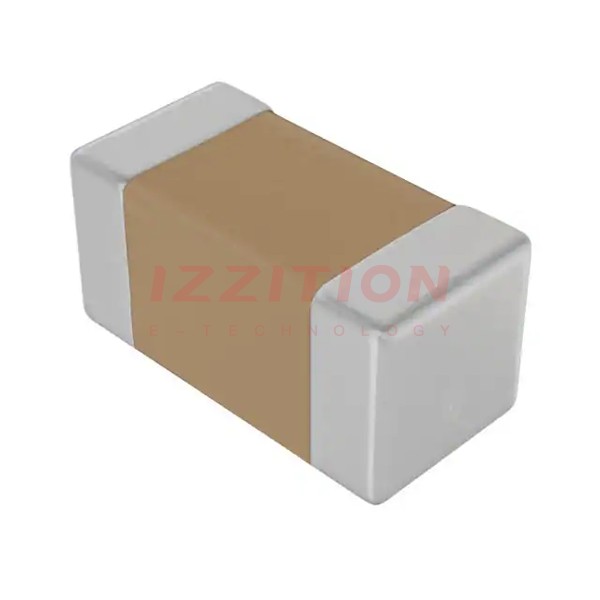

| Part Number | L0402C10NJRMST | L0402C15NJRMST |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Obsolete | Obsolete |
| Type | Multilayer | Multilayer |
| Material - Core | Ceramic | Ceramic |
| Inductance | 10 nH | 15 nH |
| Tolerance | ±5% | ±5% |
| Current Rating (Amps) | 300 mA | 300 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 310mOhm Max | 460mOhm Max |
| Q @ Freq | 10 @ 100MHz | 11 @ 100MHz |
| Frequency - Self Resonant | 4.3GHz | 3.5GHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz | 100 MHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.039" L x 0.023" W (1.00mm x 0.58mm) |
| Height - Seated (Max) | 0.018" (0.45mm) | 0.018" (0.45mm) |
