KEMET-GL-2030M - Power Entry Connectors - Inlets, Outlets, Modules Product Specifications and Latest Quotes

Connector Style:	IEC 320-C14
Connector Type:	Receptacle, Male Blades
Current - IEC:	-
Voltage - IEC:	-
Current - UL:	3A
Voltage - UL:	250VAC/DC
Filter Type:	Filtered (EMI, RFI) - Commercial
Accomodates a Fuse:	No
Number of Positions:	3
Mounting Type:	Panel Mount, Screw Hole
Termination:	Quick Connect - 0.250" (6.3mm)
Switch Features:	-
Features:	Rear Side Mount
Fuse Holder, Drawer:	-
Panel Cutout Dimensions:	Rectangular - 31.00mm x 23.00mm
Panel Thickness:	-
Material Flammability Rating:	-
Ingress Protection:	-
Approval Agency:	CSA, TUV, UL

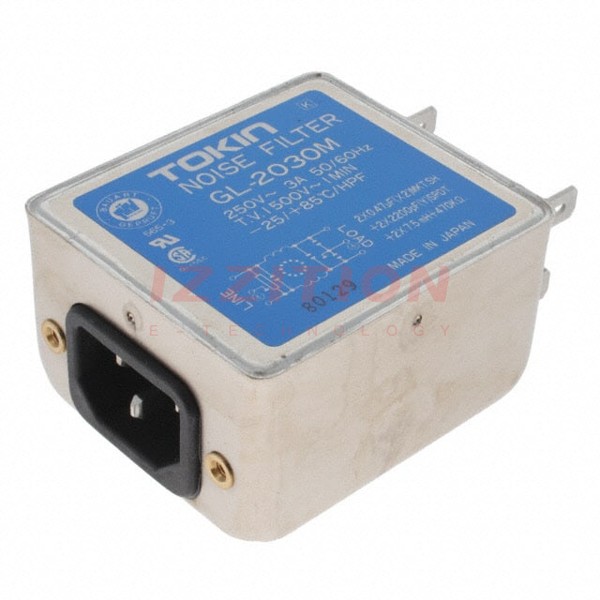

KEMET GL-2030M
