Please send RFQ , we will respond immediately.

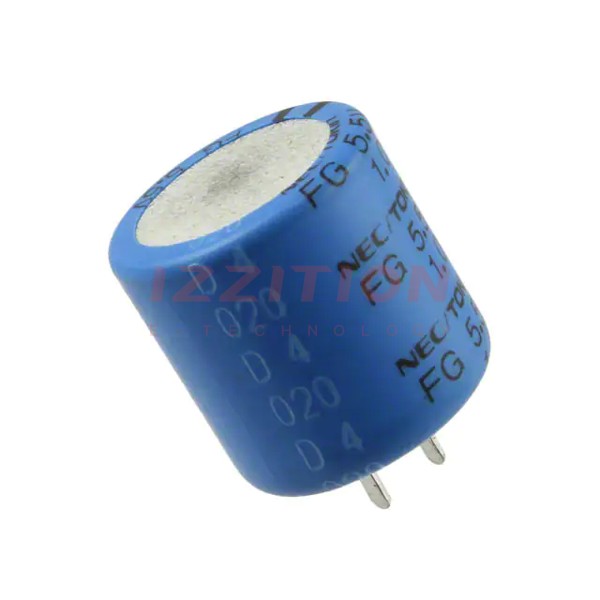

| Part Number | FGR0H105ZF | FR0H105ZF | FG0H105ZF | FGH0H105ZF |
|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active |
| Capacitance | 1 F | 1 F | 1 F | 1 F |
| Tolerance | -20%, +80% | -20%, +80% | -20%, +80% | -20%, +80% |
| Voltage - Rated | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| ESR (Equivalent Series Resistance) | 65Ohm @ 1kHz | 60Ohm @ 1kHz | 65Ohm @ 1kHz | 35Ohm @ 1kHz |
| Lifetime @ Temp. | - | - | - | - |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
| Lead Spacing | 0.200" (5.08mm) | 0.300" (7.62mm) | 0.200" (5.08mm) | 0.300" (7.62mm) |
| Size / Dimension | 0.650" Dia (16.50mm) | 0.846" Dia (21.50mm) | 0.650" Dia (16.50mm) | 0.846" Dia (21.50mm) |
| Height - Seated (Max) | 0.748" (19.00mm) | 0.866" (22.00mm) | 0.748" (19.00mm) | 0.374" (9.50mm) |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -25°C ~ 70°C | -25°C ~ 70°C |
