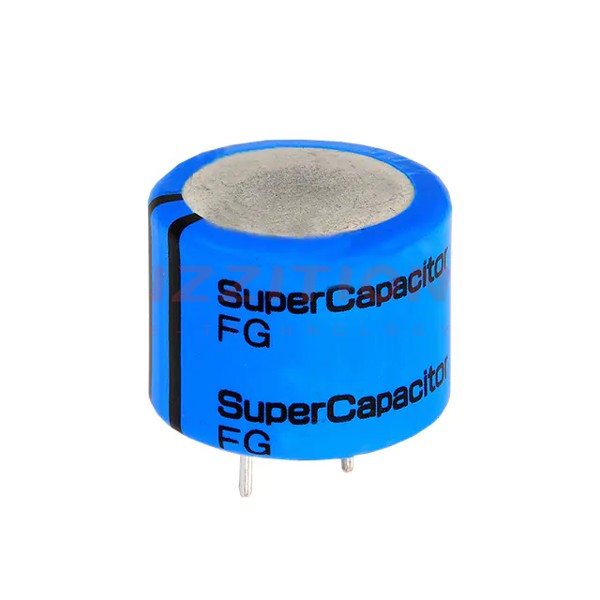

| Part Number | FG0H224ZF | FGH0H224ZF | FM0H224ZF | FT0H224ZF | FS0H224ZF | FG0H225ZF | FR0H224ZF | FA0H224ZF | FE0H224ZF | FG0H223ZF |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 220 mF | 220 mF | 220 mF | 220 mF | 220 mF | 2.2 F | 220 mF | 220 mF | 220 mF | 22 mF |
| Tolerance | -20%, +80% | -20%, +80% | -20%, +80% | -20%, +80% | -20%, +80% | -20%, +80% | -20%, +80% | -20%, +80% | -20%, +80% | -20%, +80% |
| Voltage - Rated | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| ESR (Equivalent Series Resistance) | 100Ohm @ 1kHz | 100Ohm @ 1kHz | 100Ohm | 10Ohm | 25Ohm @ 1kHz | 35Ohm @ 1kHz | 180Ohm @ 1kHz | 5Ohm @ 1kHz | 3.5Ohm @ 1kHz | 200Ohm @ 1kHz |
| Lifetime @ Temp. | - | - | 1000 Hrs @ 70°C | 1000 Hrs @ 85°C | - | - | - | - | - | - |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
| Lead Spacing | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.197" (5.00mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.300" (7.62mm) | 0.200" (5.08mm) | 0.402" (10.20mm) | 0.299" (7.60mm) | 0.200" (5.08mm) |
| Size / Dimension | 0.512" Dia (13.00mm) | 0.433" Dia (11.00mm) | 0.413" L x 0.256" W (10.50mm x 6.50mm) | 0.571" Dia (14.50mm) | 0.650" Dia (16.50mm) | 0.846" Dia (21.50mm) | 0.571" Dia (14.50mm) | 1.122" Dia (28.50mm) | 0.846" Dia (21.50mm) | 0.433" Dia (11.00mm) |
| Height - Seated (Max) | 0.354" (9.00mm) | 0.217" (5.50mm) | 0.453" (11.50mm) | 0.472" (12.00mm) | 0.512" (13.00mm) | 0.748" (19.00mm) | 0.827" (21.00mm) | 0.650" (16.50mm) | 0.610" (15.50mm) | 0.217" (5.50mm) |
| Operating Temperature | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C | -40°C ~ 85°C | -25°C ~ 70°C | -25°C ~ 70°C | -40°C ~ 85°C | -25°C ~ 70°C | -40°C ~ 70°C | -25°C ~ 70°C |
