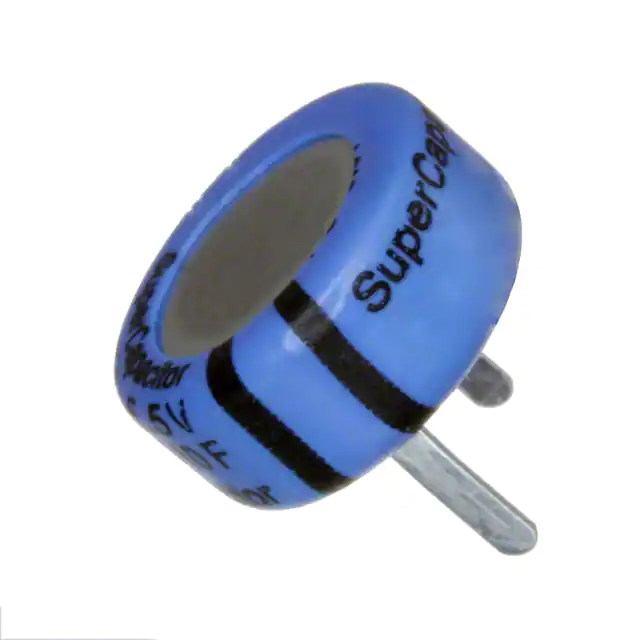

| Part Number | FG0H223ZF | FM0H223ZF | FS0H223ZF | FG0H224ZF | FG0H225ZF | FR0H223ZF |
|---|---|---|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 22 mF | 22 mF | 22 mF | 220 mF | 2.2 F | 22 mF |
| Tolerance | -20%, +80% | -20%, +80% | -20%, +80% | -20%, +80% | -20%, +80% | -20%, +80% |
| Voltage - Rated | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| ESR (Equivalent Series Resistance) | 200Ohm @ 1kHz | 200Ohm @ 1kHz | 60Ohm @ 1kHz | 100Ohm @ 1kHz | 35Ohm @ 1kHz | 220Ohm @ 1kHz |
| Lifetime @ Temp. | - | - | - | - | - | - |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
| Lead Spacing | 0.200" (5.08mm) | 0.197" (5.00mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.300" (7.62mm) | 0.200" (5.08mm) |
| Size / Dimension | 0.433" Dia (11.00mm) | 0.413" L x 0.197" W (10.50mm x 5.00mm) | 0.453" Dia (11.50mm) | 0.512" Dia (13.00mm) | 0.846" Dia (21.50mm) | 0.453" Dia (11.50mm) |
| Height - Seated (Max) | 0.217" (5.50mm) | 0.472" (12.00mm) | 0.335" (8.50mm) | 0.354" (9.00mm) | 0.748" (19.00mm) | 0.551" (14.00mm) |
| Operating Temperature | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C | -25°C ~ 70°C | -40°C ~ 85°C |
