KEMET-F464BP103J2K5A - Film Capacitors Product Specifications and Latest Quotes

Capacitance:	10000 pF
Tolerance:	±5%
Voltage Rating - AC:	900V
Voltage Rating - DC:	2500V (2.5kV)
Dielectric Material:	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance):	-
Operating Temperature:	-55°C ~ 105°C
Mounting Type:	Through Hole
Package / Case:	Radial
Size / Dimension:	0.709" L x 0.335" W (18.00mm x 8.50mm)
Height - Seated (Max):	0.571" (14.50mm)
Termination:	PC Pins
Lead Spacing:	0.591" (15.00mm)
Applications:	High Pulse, DV/DT
Ratings:	-
Features:	-

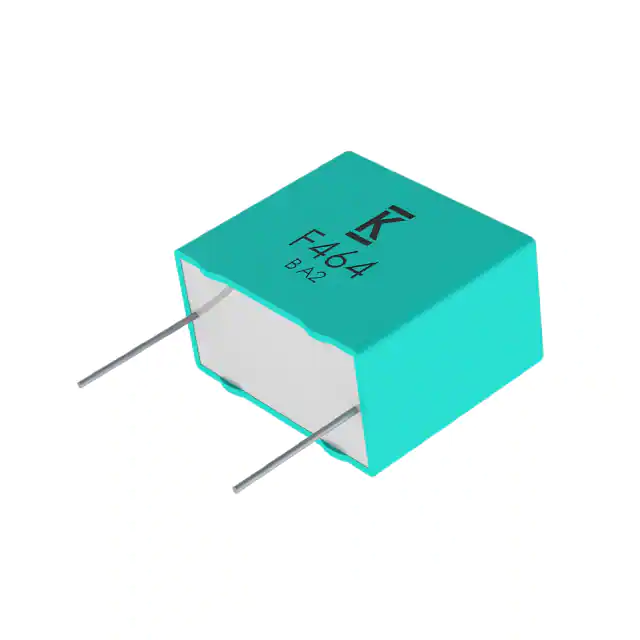

KEMET F464BP103J2K5A
