Please send RFQ , we will respond immediately.

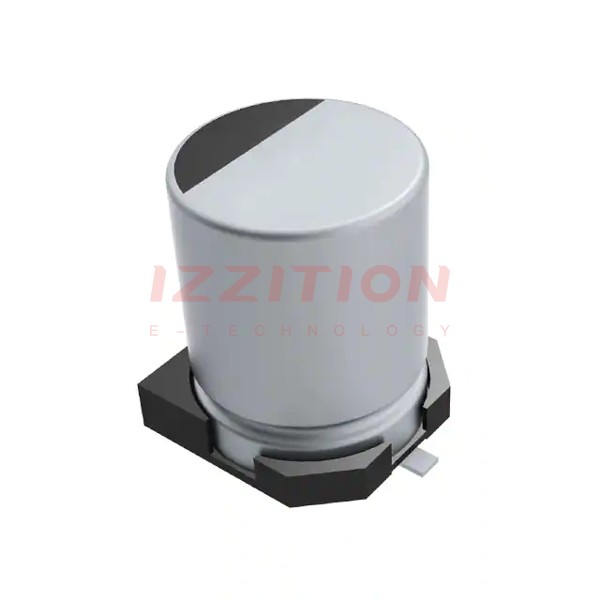

| Part Number | EXV336M050A9MAA | EXV336M050S9MAA |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 33 µF | 33 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | AEC-Q200 |
| Applications | General Purpose | Automotive |
| Ripple Current @ Low Frequency | 245 mA @ 120 Hz | 245 mA @ 120 Hz |
| Ripple Current @ High Frequency | 350 mA @ 100 kHz | 350 mA @ 100 kHz |
| Impedance | 500 mOhms | 500 mOhms |
| Lead Spacing | - | - |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD |
