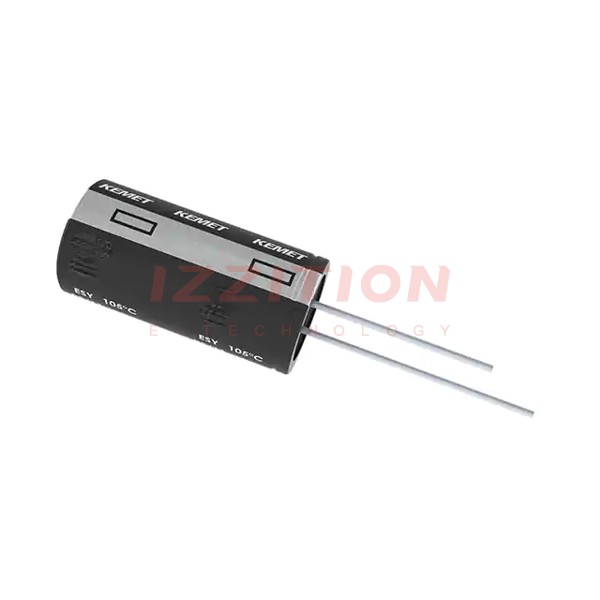

KEMET-ESY156M035AC2AA - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	15 µF
Tolerance:	±20%
Voltage - Rated:	35 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	1000 Hrs @ 105°C
Operating Temperature:	-40°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	133 mA @ 120 Hz
Ripple Current @ High Frequency:	190 mA @ 100 kHz
Impedance:	570 mOhms
Lead Spacing:	0.079" (2.00mm)
Size / Dimension:	0.197" Dia (5.00mm)
Height - Seated (Max):	0.335" (8.50mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

KEMET ESY156M035AC2AA
