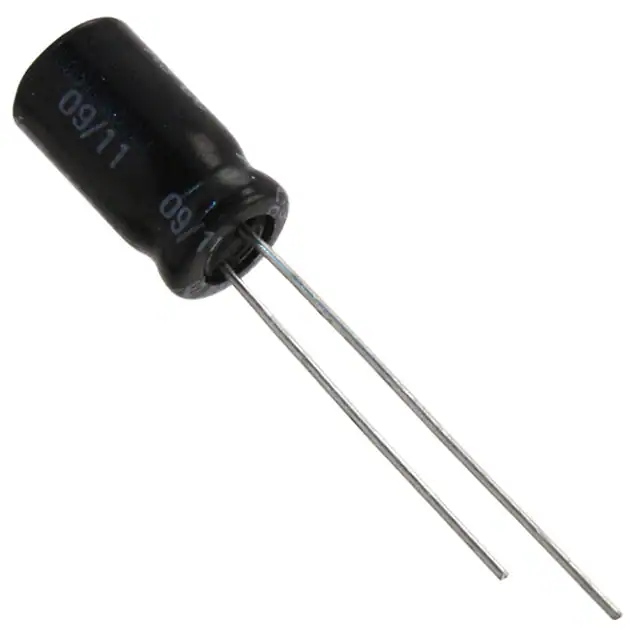

| Part Number | ESY107M025AE3AA | EST107M025AE3AA |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 100 µF | 100 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 25 V | 25 V |
| ESR (Equivalent Series Resistance) | 130mOhm @ 100kHz | 380mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 287 mA @ 120 Hz | 136 mA @ 120 Hz |
| Ripple Current @ High Frequency | 410 mA @ 100 kHz | 340 mA @ 100 kHz |
| Impedance | 130 mOhms | - |
| Lead Spacing | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Size / Dimension | 0.236" Dia (6.00mm) | 0.236" Dia (6.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) | 0.492" (12.50mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
