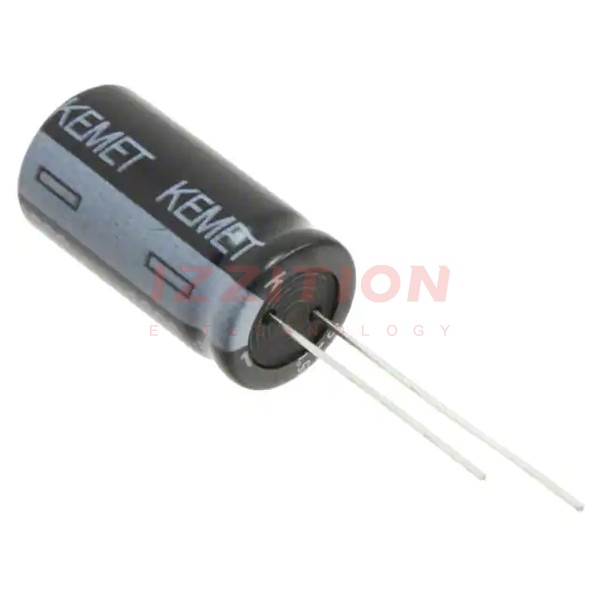

| Part Number | ESW687M035AL3AA | ESY687M035AL3AA |
|---|---|---|
| Manufacturer | KEMET | KEMET |
| Product Status | Active | Active |
| Capacitance | 680 µF | 680 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 35 V | 35 V |
| ESR (Equivalent Series Resistance) | 38mOhm @ 100kHz | 21mOhm @ 100kHz |
| Lifetime @ Temp. | 6000 Hrs @ 105°C | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 1.14 A @ 120 Hz | 1.77 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.9 A @ 100 kHz | 2.36 A @ 100 kHz |
| Impedance | 38 mOhms | 21 mOhms |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.512" Dia (13.00mm) | 0.512" Dia (13.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) | 0.866" (22.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
