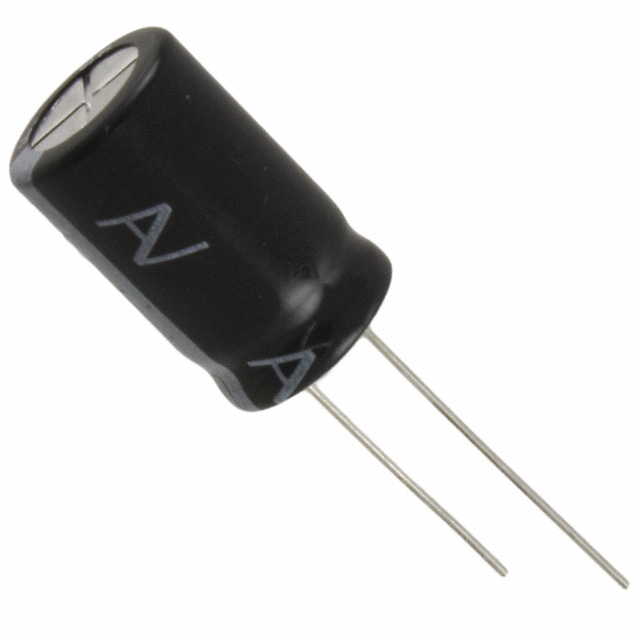

| Part Number | ESW477M050AL3AA | ESY477M050AL3AA | EST477M050AL3AA |
|---|---|---|---|
| Manufacturer | KEMET | KEMET | KEMET |
| Product Status | Active | Active | Active |
| Capacitance | 470 µF | 470 µF | 470 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | 60mOhm @ 100kHz | 27mOhm @ 100kHz | 160 mohm @ 100kHz |
| Lifetime @ Temp. | 6000 Hrs @ 105°C | 5000 Hrs @ 105°C | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 830 mA @ 120 Hz | 1.538 A @ 120 Hz | 830 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.66 A @ 100 kHz | 2.05 A @ 100 kHz | 1.66 A @ 100 kHz |
| Impedance | 60 mOhms | 27 mOhms | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.512" Dia (13.00mm) | 0.512" Dia (13.00mm) | 0.512" Dia (13.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) | 0.866" (22.00mm) | 0.866" (22.00mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
