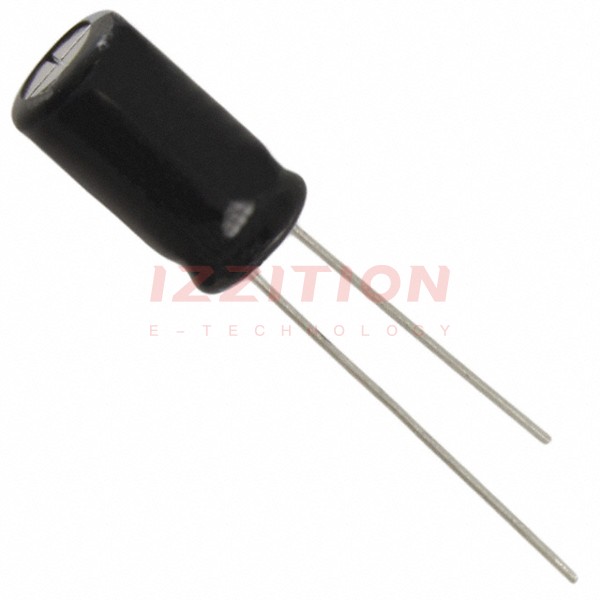

KEMET-ESW477M016AG4AA - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	470 µF
Tolerance:	±20%
Voltage - Rated:	16 V
ESR (Equivalent Series Resistance):	85mOhm @ 100kHz
Lifetime @ Temp.:	4000 Hrs @ 105°C
Operating Temperature:	-40°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	420 mA @ 120 Hz
Ripple Current @ High Frequency:	840 mA @ 100 kHz
Impedance:	85 mOhms
Lead Spacing:	0.138" (3.50mm)
Size / Dimension:	0.315" Dia (8.00mm)
Height - Seated (Max):	0.669" (17.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

KEMET ESW477M016AG4AA
