KEMET-ESW227M063AH4AA - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	220 µF
Tolerance:	±20%
Voltage - Rated:	63 V
ESR (Equivalent Series Resistance):	147mOhm @ 100kHz
Lifetime @ Temp.:	5000 Hrs @ 105°C
Operating Temperature:	-40°C ~ 105°C
Polarization:	Polar
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	442.5 mA @ 120 Hz
Ripple Current @ High Frequency:	885 mA @ 100 kHz
Impedance:	147 mOhms
Lead Spacing:	0.197" (5.00mm)
Size / Dimension:	0.394" Dia (10.00mm)
Height - Seated (Max):	0.827" (21.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

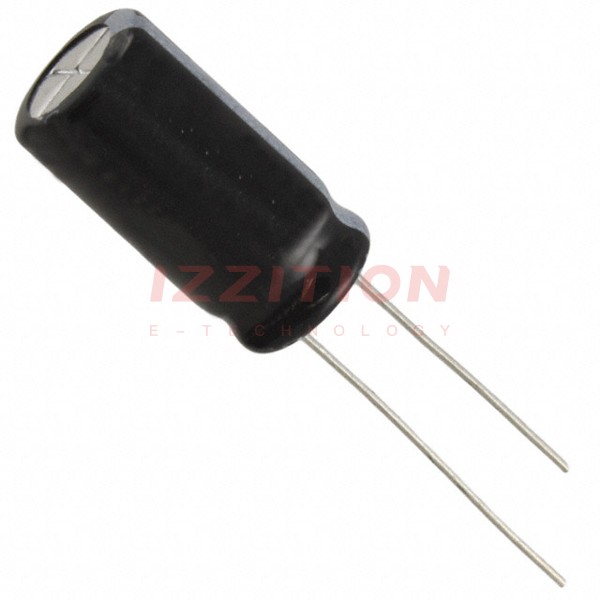

KEMET ESW227M063AH4AA
